Warehouse system of Shandong Keyuan Pharmaceutical Co., Ltd.

First, tClient Name:

Shandong Keyuan Pharmaceutical Co., Ltd.

Second, Project Overview:

1. Scope of supply: Engineering design, manufacturing, installation and commissioning of an automated 3D warehouse system.

2. Project Introduction

Shandong Keyuan Pharmaceutical Co., Ltd. is the key member of the health industry of Linuo Group, Shandong Chemosynthetic drugs industry enterprise and is committed to the chemical API products R & D, manufacturing and sales, as well as international high-end CMO business.

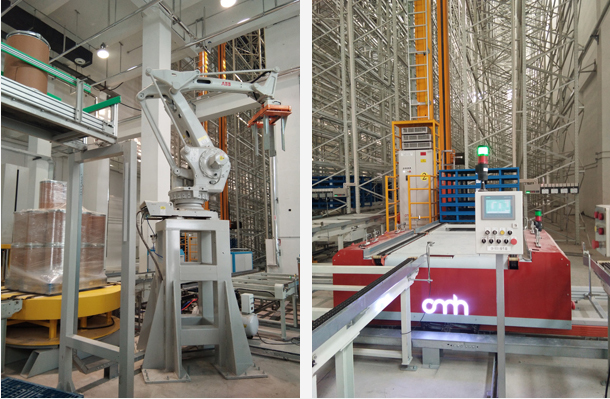

From the end of the production line of the production workshop, the finished product is automatically transported from the laser guide AGV forklift truck to the 3D warehouse to complete the storage, and the automatic storage of the empty bucket and the selection of the finished product are completed by the manipulator and the telescopic belt machine. The whole pallet loading is completed by AGV. The project is consisted of box conveying system, robot palletizing system, in and out pallet conveying system, shelf system, stacker system, pallet, WCS electrical control system, network communication system, etc. This stereo warehouse meets GMP/FDA certification qualifications.

3. Project parameters

(1) Storage: 2816
(2) Height: 19 meters
(3) Stacker: 2 sets
(4) Load: 700 kg
