Zhongtai Jintan Painting Conveying Line

First, the customer name:

Jiangsu Jintan Automobile Industry Co., Ltd.

Second, the project profile:

1. Scope of supply: pre-treatment catenary, ground skid conveyor line, PVC airborne inverted skid conveyor system, including mechanical design, production, installation, etc.

2. Project introduction:

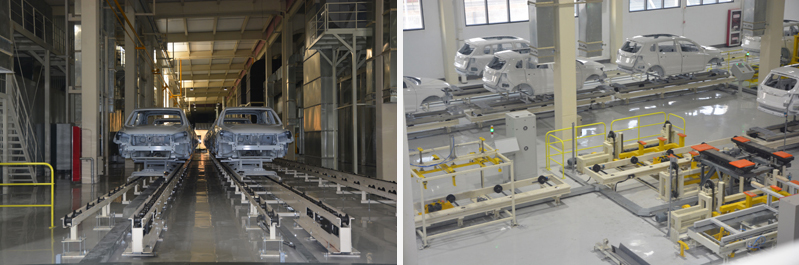

Zhongtai Jintan Base paints the conveyor line to complete the painting production task of the body. The workshop undertakes the task of painting, anti-sounding, decorating and anti-corrosion of the body and spare parts of medium and high-grade cars. The scope of the project includes: pre-treatment catenary, ground skid conveyor line, PVC airborne inverted skid conveyor system and the mechanical parts associated with it.

The main parameters:

Product: The production line passes the maximum body-in-white size: L×W×H: 4900×1850×1500 (mm)

The workshop production line passes the maximum body-in-white weight: 500Kg/set.

Production program: 30JPH (net), 2 shifts / day

Production method: continuous through coating production line

Conveyor line form: pre-treatment, electrophoresis for suspended accumulation conveyor line; skid conveyor line; aerial inverted sled conveyor line
