Shenlong factory welding line

First, the customer name:

Dongfeng Peugeot Citroen Automobile Co., Ltd

Second, the project profile:

1. Scope of supply: air slide conveyor line, main body production line elevator, ground adjustment line conveyor line, and welding oil catenary, a total of 10 conveyor lines, including design, production, installation, commissioning

2. Project introduction:

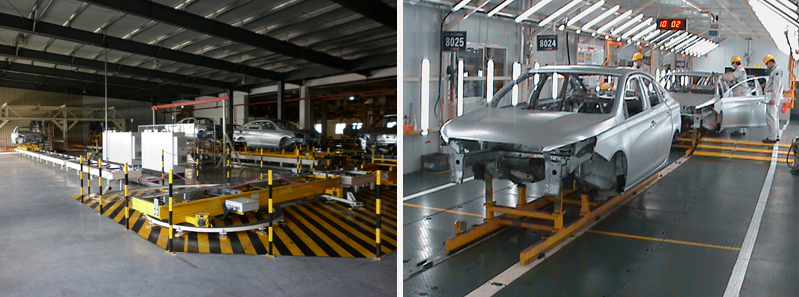

The production line of the Shenlong No. 1 factory welding and conveying line includes: air sled conveyor line, main body production line elevator, ground adjustment line conveyor line, and welding oil catenary, a total of 10 conveyor lines. It is suitable for mixed production of TX9/T9 multi-variety models. The whole workshop mechanical equipment and electronic control equipment are strictly in accordance with the Shenlong DPCA French standard. The conveyor line is equipped with a CS control system to realize real-time monitoring of on-site equipment, vehicle storage area access vehicle scheduling, equipment failure alarm prompts, etc., to achieve vehicle information management.

The main parameters:

Production capacity: 120,000 vehicles

Product: Production line through the largest body-in-white size: L × W × H: 4600 × 2000 × 1800 (mm)

The workshop production line passes the maximum body-in-white weight: 550Kg/set.

Production program: 48JPH, 3 shifts/day, equipment operation rate: 99%

Production mode: continuous through production line

Conveyor line form: skid conveyor line
